Air Products offer a full range of high pressure cylinders filling system at a pressure 150 to 200 bar

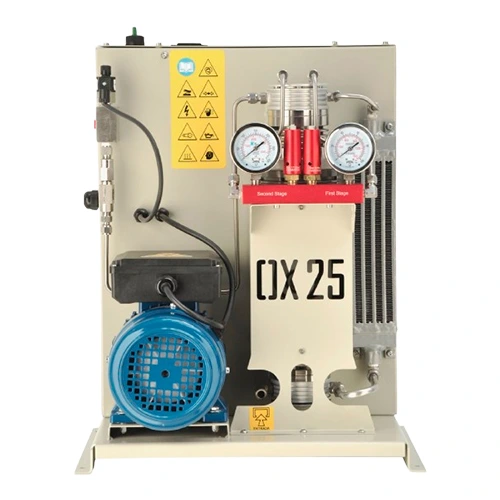

OX25
• Small booster capacity 0.5 m3/h to 2.1 m3/h
• 100% oíl free high pressure booster
• Final pressure 150 bar
• Low RPM
• Heavy duty design for continuous operation
• Two stage

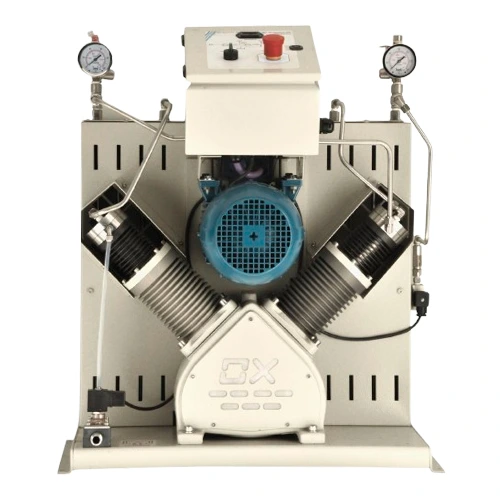

OX50
• Small booster capacity 1.2 m3/h to 2.8 m3/h
• 100% oíl free high pressure booster
• Final pressure 150 bar
• Low RPM
• Heavy duty design for continuous operation
• Two stage
OX100/OX100PLUS
• Small booster capacity 1.5 m3/h to 4.8 m3/h
• 100% oil free high pressure booster
• Final pressure 150 bar / 200 bar
• Low RPM
• Heavy duty design for continuous operation
• Two stage
OX200/OX200PLUS
• Medium booster capacity 1.5 m3/h to 7.5 m3/h
• 100% oil free high pressure booster
• Final pressure 150 bar / 200 bar
• Low RPM
• Heavy duty design for continuous operation
• Two stage
OX300
• Medium booster capacity 8.4 m3/h to 14 m3/h
• 100% oil free high pressure booster
• Final pressure 150 bar
• Low RPM
• Heavy duty design for continuous operation
• Three stage
OX300PLUS
• Medium booster capacity 7.5 m3/h to 13.5 m3/h
• 100% oil free high pressure booster
• Final pressure 200 bar
• Low RPM
• Heavy duty design for continuous operation
• Three stage

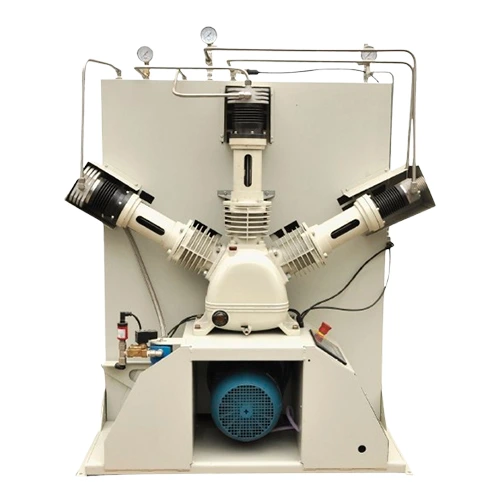

OX500
• High booster capacity 12 m3/h to 20.5 m3/h
• 100% oil less high pressure booster
• Final pressure 150 bar
• Low RPM
• Heavy duty design for continuous operation
• Three stage

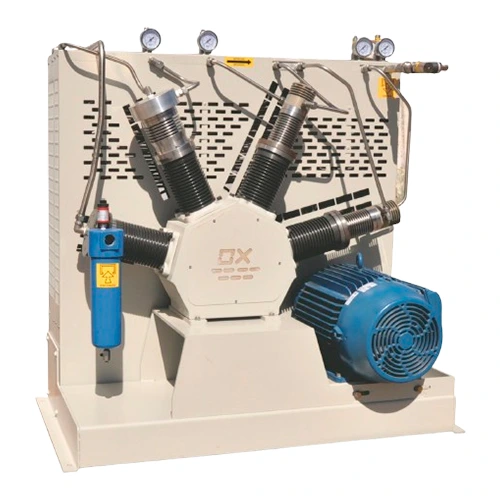

OX1000
• High booster capacity 20 m3/h to 44 m3/h
• 100% oil less high pressure booster
• Final pressure 150 bar
• Low RPM
• Heavy duty design for continuous operation
• Four stage
OX1000PLUS
• High booster capacity 20 m3/h to 36 m3/h
• 100% oil less high pressure booster
• Final pressure 200 bar
• Low RPM
• Heavy duty design for continuous operation
• Four stage
